DN200mm-2400mm HDPE Pipe Extrusion Machine 1000kg/H Single Screw Extruder

Name: DN200mm-2400mm HDPE Pipe Extrusion Machine 1000kg/H Single Screw Extruder
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMPG-300,SMPG800,SMPG1200
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Model Number: SMPG-300,SMPG800,SMPG1200

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                2400mm HDPE Pipe Extrusion Machine, DN200mm HDPE Pipe Extrusion Machine, HDPE Pipe Extrusion Machine 1000kg/H


Extruder Type:	Single Screw Extruder	Pipe Diameter Range:	200mm-4000mm
Total Power:	200-500kw	Production Speed:	2-10m/min
Material:	HDPE/PP/PA/PVC	Cooling Method:	Water Cooling
Heating Method:	Electric Heating	Max. Output:	1000kg/h

Extruder Type:	Single Screw Extruder
Pipe Diameter Range:	200mm-4000mm
Total Power:	200-500kw
Production Speed:	2-10m/min
Material:	HDPE/PP/PA/PVC
Cooling Method:	Water Cooling
Heating Method:	Electric Heating
Max. Output:	1000kg/h

Product Description

DN200mm-2400mm HDPE Pipe Extrusion Machine 1000kg/H Single Screw Extruder

Product Specifications

Attribute	Value
Extruder Type	Single Screw Extruder
Pipe Diameter Range	200mm-4000mm
Total Power	200-500kw
Production Speed	2-10m/min
Material	HDPE/PP/PA/PVC
Cooling Method	Water Cooling
Heating Method	Electric Heating
Max. Output	1000kg/h

Product Overview

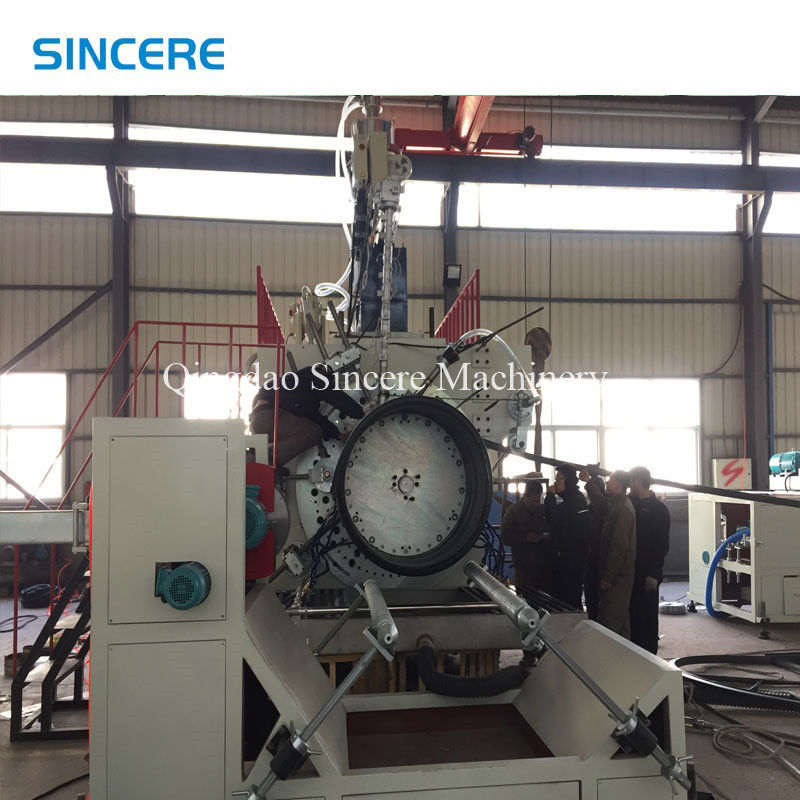

The DN200-2400mm HDPE Inner Rib Enhanced Winding Profiled Pipe PLC Manufacturing Extrusion Machine is a high-performance plastic spiral pipe production line for large diameter buried drain pipes. Utilizing hollow wall winding pipe production technology with intellectual property, it produces pipes ranging from Ø200~Ø2400mm, widely used in civil water drainage and wastewater systems.

Key Advantages

Lower investment with easy-to-operate automatic control system
Winding method using semi-round two side circle profile
Inner PE-layer composites with U-type pipe in melting condition for permanent adhesion
Electric-magnetic heating system saves 40-60% electric power
Premium Siemens/Omron electrical components
Production speed of 1-20m/min
Maximum pipe size of 3000mm

PE Spiral Corrugated Pipe Features

Light weight per meter
Belling link with tight cementation
High pressure resistance and strength
Anti-frozen with 50-year service life
Convenient construction

Technical Parameters

Model	Pipe Dia.(mm)	Extruder Model	Production Speed (m/h)	Max. Output (kg/h)	Total Power (kw)	Overall Dimension (mm)
XSWK-800	200-800	SJ-75*33(1 set) SJ-45/30(2 sets)	1-30	200	180	1700080004000
XSWK-1600	600-1600	SJ-90*30(1 set) SJ-45/30(2 sets)	1-20	300	220	20000100004800
XSWK-2000	800-2000	SJ-90/33(1 set) SJ-65/30(2 sets)	1-18	400	260	22000120005000
XSWK-3000	1500-3000	SJ-120/33(1 set) SJ-65/30(2sets)	1-10	500	310	25000140005300

Applications

This extrusion line produces various types of pipes for sewage and drainage purposes, including:

Storm water drainage pipes
Rain water sewage plastic pipes
Cable protection pipes
Civil construction sewage pipes
Manhole wellbores

Packaging & Shipping

Product Packaging: The Winding Pipe Extrusion Line is securely packaged in sturdy wooden crates with foam padding to prevent transit damage.

Shipping: We ship worldwide via sea freight. Shipping costs and time estimates are provided upon order confirmation.

Frequently Asked Questions

Q: What is the brand name of this extrusion line?

A: The brand name of this extrusion line is Sincere.

Q: What are the different models available for this extrusion line?

A: The different models available are SMPG-300, SMPG-800, SMPG-1200.

Q: Where is this extrusion line manufactured?

A: This extrusion line is manufactured in China.

Q: What materials can this extrusion line process?

A: This extrusion line can process PVC, PE, and PP materials.

Q: What is the maximum production speed of this extrusion line?

A: The maximum production speed is up to 30 meters per minute.
