Home > products > Corrugated Pipe Extrusion Line > 90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine
90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine
90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine
90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine
90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine

90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine

Product Details

Place of Origin: China

Brand Name: Sincere

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Get Best Price
Chat Now

Product Details

Product Description
Product Details
Highlight:

1200mm Double Wall Corrugated Pipe Machine

,

900mm Double Wall Corrugated Pipe Machine

,

1200mm DWC Pipe Machine

Pipe Diameter Range:
10mm-1600mm
Control System:
PLC Control
Pipe Name:
HDPE Single Wall Corrugated Cable Duct
Main Electrics:
Siemens / Schneider
Moulds Material:
Aluminium Alloy
Pipe Material:
PE/PP/HDPE
Inverter:
Schneider
Keywords:
Plastic Machine
Pipe Mould:
60 Or 90 Pairs
Heating Way:
Foundry Aluminum Heater
Product Size:
6-20mm
Mold Number:
72pair
The Screw Diameter:
150mm
Production Capacity:
100-1500kg/h
Customized:
Customized
Pipe Diameter Range:
10mm-1600mm
Control System:
PLC Control
Pipe Name:
HDPE Single Wall Corrugated Cable Duct
Main Electrics:
Siemens / Schneider
Moulds Material:
Aluminium Alloy
Pipe Material:
PE/PP/HDPE
Inverter:
Schneider
Keywords:
Plastic Machine
Pipe Mould:
60 Or 90 Pairs
Heating Way:
Foundry Aluminum Heater
Product Size:
6-20mm
Mold Number:
72pair
The Screw Diameter:
150mm
Production Capacity:
100-1500kg/h
Customized:
Customized
Product Description
90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine
Product Specifications
Attribute Value
Pipe Diameter Range 10mm-1600mm
Control System PLC Control
Pipe Name HDPE Single Wall Corrugated Cable Duct
Main Electrics Siemens / Schneider
Moulds Material Aluminium alloy
Pipe Material PE/PP/HDPE
Inverter Schneider
Pipe Mould 60 or 90 pairs
Heating Way Foundry Aluminum Heater
Product Size 6-20mm
Mold Number 72pair
The Screw Diameter 150mm
Production Capacity 100-1500kg/h
Customized Customized
Product Overview
High-Speed PE PP double wall corrugated pipe making machine/extrusion line (90-1200mm). New Type PE PP double wall corrugated pipe making machine/extrusion line (90-1200mm).
Available Diameters: 90-300mm, 110-600mm, 200-800mm, 300-1000mm, 600-1200mm
HDPE Double-Walled Corrugated Pipe Applications
HDPE/PP double wall corrugated pipe is widely used as drain pipe. Our company has developed this production line by absorbing foreign advanced technology and independent research, incorporating multiple patented technologies.
Our new high-speed PE | PP double-wall corrugated pipe production line features a high-performance single-screw extruder and a horizontal structure forming machine with shuttle drive, sealed water-cooling, and online flaring. The system offers high automation, stable operation, and large output capacity.
Production Capabilities
The PE/PP double wall corrugated pipe production line can produce single-walled, double-wall corrugated pipe (with Pipe Belling), three-wall corrugated pipe, and various special-shaped bellows with specifications from ID90-ID1200.
Technical Parameters
Line Model SMSG-300 SMSG-600 SMSG-800 SMSG-1000 SMSG-1200
Diameter Range (DN|ID)(mm) 90mm-300mm 110mm-600mm 200mm-800mm 300mm-1000mm 600mm-1200mm
Mold number (pair) 36 36 36 39 39
Max. Operating speed (m/min) 18 6.5 5.5 3.5 1.8
Total power(kw) 250 395 650 980 1350
Max. output(kg/h) 600 1350 1600 1900 2100
Dimension (mm) Length*Width*Height 27*3.5*2.8m 27*5.5*3.8m 29*6.8*4.0m 32*7.6*4.2m 35*8.5*4.5m
Product Gallery

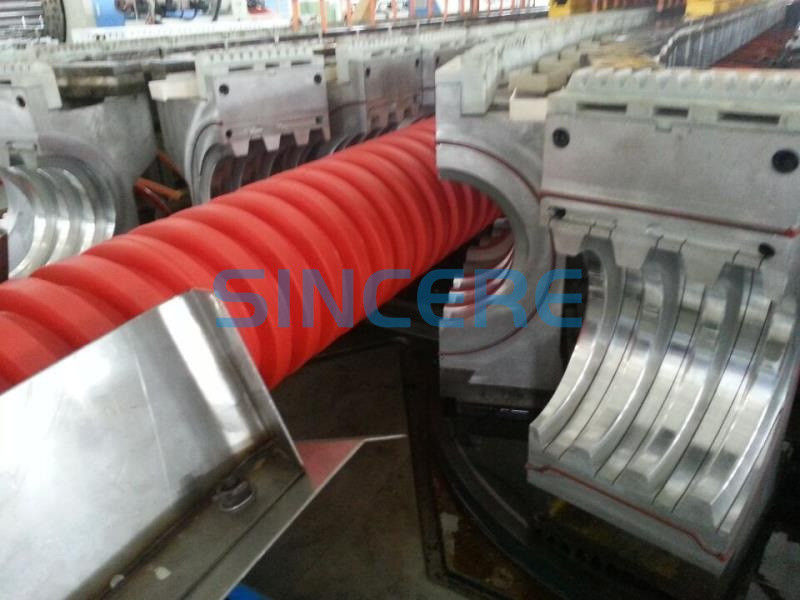

90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine 0 90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine 1 90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine 2 90mm-1200mm Double Wall Corrugated Pipe Machine DWC Pipe Machine 3
Our Services
We provide complete installation and operational support services
Custom product solutions tailored to your specific requirements
Technical support and problem resolution during product use
One-year warranty (excluding man-made damage)
Factory visits welcome for potential win-win cooperation
