PE Plastic Flakes Pelletizing Line 200kg/H-800kg/H PVC Pelletizing Extrusion Line

Name: PE Plastic Flakes Pelletizing Line 200kg/H-800kg/H PVC Pelletizing Extrusion Line
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMPEG-01,SMPEG02,SMPEG03
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Certification: CE

Model Number: SMPEG-01,SMPEG02,SMPEG03

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                PE Plastic Flakes Pelletizing Line 200kg/H, 200kg/H PVC Pelletizing Extrusion Line, 800kg/H PVC Pelletizing Extrusion Line


Color:	Customized	Condition:	NEW
Plastic Processed:	PVC\|PP\|PE\|ABS	Cutting Type:	Noodles Cutting/hot Cutting/water Ring Cutting
Capacity:	100-1000kg/h	Warranty:	1 Year
Material:	Plastic	Type:	Single Screw/twin Screw

Color:	Customized
Condition:	NEW
Plastic Processed:	PVC\|PP\|PE\|ABS
Cutting Type:	Noodles Cutting/hot Cutting/water Ring Cutting
Capacity:	100-1000kg/h
Warranty:	1 Year
Material:	Plastic
Type:	Single Screw/twin Screw

Product Description

PE Plastic Flakes Pelletizing Line 200kg/H-800kg/H PVC Pelletizing Extrusion Line

Key Specifications

Color	Customized
Condition	NEW
Plastic Processed	PVC \| PP \| PE \| ABS
Cutting Type	Noodles Cutting / Hot Cutting / Water Ring Cutting
Capacity	100-1000kg/h
Warranty	1 Year
Type	Single Screw / Twin Screw

Product Overview

Our high-performance plastic pelletizing line is designed for recycling and processing various plastic materials including PP, PE, PET, PS, ABS, PA, PVC, PC, POM, EVA, and PMMA. The system features specialized screw configurations for optimal material processing and color mixing capabilities.

High torque gearbox design for quiet, stable operation
Wear-resistant screw and barrel with excellent plastification
Vacuum-vented design removes vapor/gas for denser pellets
Two-step extrusion process ensures pure output granules
Capacity range: 200kg/h to 800kg/h
CE certified with 1-year warranty

Technical Specifications

Model	Screw Dia. (mm)	L/D	Screw Speed Max. (rpm)	Main Motor Power (kw)	Output (kg/h)
XSSP45	45	25-36	20-120	5.5-11	18-40
XSSP65	65	25-36	20-120	15-37	40-90
XSSP90	90	25-36	20-95	37-75	100-250
XSSP120	120	25-36	20-80	55-110	250-380
XSSP150	150	25-36	20-80	110-160	300-450
XSSP180	180	25-36	20-80	180-250	400-650

System Components

The complete pelletizing line includes:

Two single screw extruders
Die and mould assembly
Cooling sink
Pelletizer
Water fetch device
Hydraulic pressure station
Pressure sensor
Automatic control system
Spiral feeding machine

Applications

This industrial-grade plastic granulator is ideal for:

Plastic recycling plants
Manufacturing facilities
Waste management operations
Packaging industry
Agricultural plastic recycling
Construction material recycling

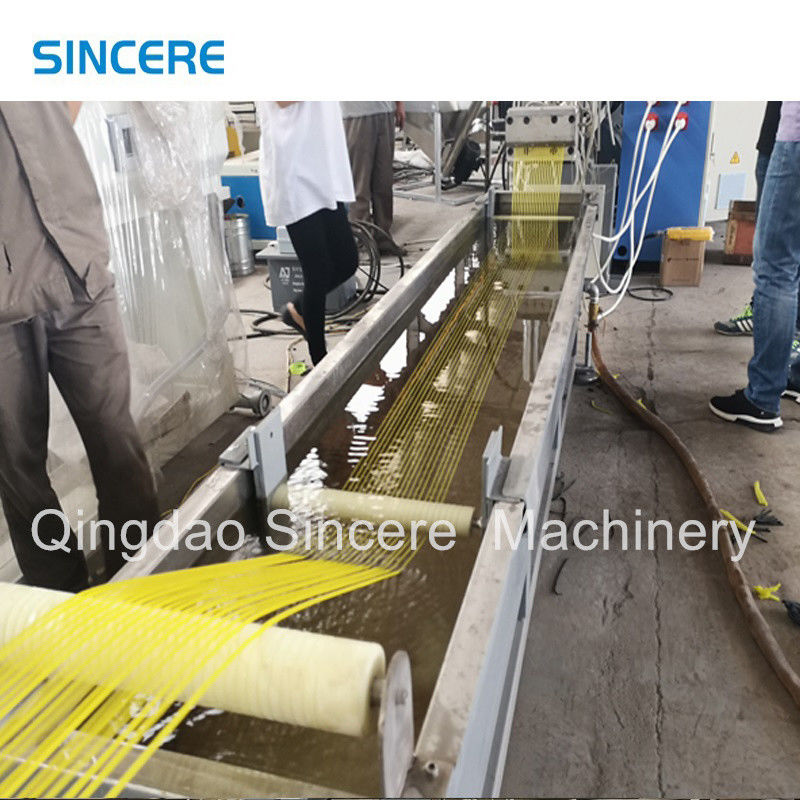

Product Images

Shipping & Packaging

The complete pelletizing line is securely packaged in sturdy wooden crates to ensure safe transportation. We work with specialized freight carriers for heavy machinery and provide tracking information for all shipments.

Frequently Asked Questions

What is the brand name of the plastic pelletizing line?

Sincere

What models are available?

SMPEG-01, SMPEG-02, and SMPEG-03

Where is it manufactured?

China

Is the machine certified?

Yes, CE certified

What is the minimum order quantity?

1 unit

What is the delivery time?

50 working days
