Home > products > Plastic Auxiliary Equipment > PE PP PVDF PVC Plastic Sheet Welding Machine 600mm 900mm 1200mm Width

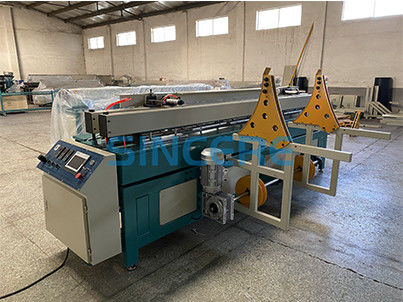

PE PP PVDF PVC Plastic Sheet Welding Machine 600mm 900mm 1200mm Width

Product Details

Brand Name: Sincere

Certification: CE

Model Number: SMH-3000,4000,5000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 15 Working Days

Supply Ability: 20 Stes Per Month

Get Best Price
Chat Now
Product Details
Highlight:

PVC Plastic Sheet Welding Machine

,

PVDF Plastic Sheet Welding Machine

,

600mm Plastic Sheet Welding Machine

Air Pressure(Kg.F /Cm2):
6.0-8.0
Specification:
Sheet Width 600, 900, 1200, 1500, 1800, 2000mm
Processing Period:
20 Days
Transport Package:
Stretch Film And Wooden Pallet, Wooden Packing
Board Layers:
Single-Layer Or Multi-Layers
Rated VoltageRated Voltage:
380V50/60Hz
Heating Power:
9kw-15kw
Sheet Thickness:
3.0-30.0mm
Air Pressure(Kg.F /Cm2):
6.0-8.0
Specification:
Sheet Width 600, 900, 1200, 1500, 1800, 2000mm
Processing Period:
20 Days
Transport Package:
Stretch Film And Wooden Pallet, Wooden Packing
Board Layers:
Single-Layer Or Multi-Layers
Rated VoltageRated Voltage:
380V50/60Hz
Heating Power:
9kw-15kw
Sheet Thickness:
3.0-30.0mm
Product Description
PE PP PVDF PVC Plastic Sheet Welding Machine

High-performance welding machine for plastic sheets with widths of 600mm, 900mm, and 1200mm, designed for industrial applications requiring precision bending and fusion welding of thermoplastic materials.

Key Specifications
Air Pressure 6.0-8.0 Kg.F/Cm²
Sheet Width 600-2000mm
Processing Period 20 Days
Rated Voltage 380V 50/60Hz
Heating Power 9kw-15kw
Sheet Thickness 3.0-30.0mm
PE PP PVDF PVC Plastic Sheet Welding Machine 600mm 900mm 1200mm Width 0
Product Features
  • Designed for plastic boards with lengths of 3000mm to 6000mm and thickness from 3mm to 30mm
  • Performs horizontal and round (rolling) welds with minimum circular size of 500mm
  • Bends plastic plates from 2 to 100 degrees with precision
  • Available in multiple models (SMW2000 to SMW6000) for different requirements
  • Compatible with all thermoplastic sheets (PP, PE, HDPE, PVDF, PVC, PPN)
  • Advanced technology ensures strong angles and appealing appearance
  • Easy maintenance with quick replacement of consumable parts (most within 2 minutes)
  • 24-month quality guarantee with free replacement for malfunctioning parts
Technical Parameters
Model SIN-3000 SIN-4000
Processing thickness (mm) 3-30mm 3-30mm
Processing length (mm) 3000 4000
Bending angle 0-135 0-135
Air pressure (kg.f/cm²) 4-10 4-10
Energy source (m³/min) 0.0032 0.0052
Rated voltage (V) 380 380
Dimensions (L×W×H mm) 4200×1900×1600 5200×2900×1600
Applications

This versatile welding machine is ideal for manufacturing reservoirs, tanks, containers, plastic apparatus, pipeline construction, ventilation systems, water treatment systems, scrubbers, environmental technology, swimming pools, and transport logistics.

Support & Services

Our technical support team provides comprehensive assistance including installation support, troubleshooting guidance, and maintenance advice to ensure optimal performance and longevity of your equipment.

Packaging & Shipping

The machine is securely packaged with stretch film and wooden pallets/packing to ensure safe transportation. Orders are processed within 1-2 business days with tracking information provided.

Frequently Asked Questions
What is the brand name of this equipment?

Sincere

What models are available?

SMH-3000, SMH-4000, and SMH-5000

Where is this equipment manufactured?

China (CE certified)

What is the minimum order quantity?

1 unit

What is the delivery time?

15 working days

What is the monthly production capacity?

20 sets per month
