HDPE Sheet Bending Welding Machine Multi Layers Plastic Sheet Welding Machine

Name: HDPE Sheet Bending Welding Machine Multi Layers Plastic Sheet Welding Machine
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMH-3000，4000，5000
Price: 110.00 USD
Availability: InStock

Product Details

Brand Name: Sincere

Certification: CE

Model Number: SMH-3000，4000，5000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 15 Working Days

Supply Ability: 20 Stes Per Month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                HDPE Sheet Bending Welding Machine, HDPE Plastic Sheet Welding Machine, Multi Layers Plastic Sheet Welding Machine


Transport Package:	Stretch Film And Wooden Pallet, Wooden Packing	Processing Period:	20 Days
Board Layers:	Single-Layer Or Multi-Layers	Warranty Time:	One Year
Specification:	Sheet Width 600, 900, 1200, 1500, 1800, 2000mm	Heating Power:	9kw-15kw
Rated VoltageRated Voltage:	380V50/60Hz	Air Pressure(Kg.F /Cm2):	6.0-8.0

Transport Package:	Stretch Film And Wooden Pallet, Wooden Packing
Processing Period:	20 Days
Board Layers:	Single-Layer Or Multi-Layers
Warranty Time:	One Year
Specification:	Sheet Width 600, 900, 1200, 1500, 1800, 2000mm
Heating Power:	9kw-15kw
Rated VoltageRated Voltage:	380V50/60Hz
Air Pressure(Kg.F /Cm2):	6.0-8.0

Product Description

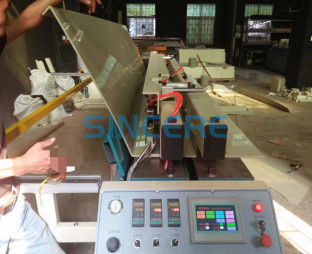

HDPE Sheet Bending Welding Machine

Multi-Layer Plastic Sheet Welding Solution

Professional-grade plastic welding machine for HDPE, PP, and PVC sheets with thickness ranging from 3mm to 30mm. Capable of horizontal and circular welds with bending angles from 2-185 degrees.

Processing Length

3000mm to 6000mm

Heating Power

9kw-15kw

Rated Voltage

380V 50/60Hz

Warranty

24 Months

Key Features

Versatile welding capabilities: horizontal and circular welds with minimum 500mm diameter
Wide material compatibility: PP, PE, HDPE, PVDF, PVC, PPN sheets
Adjustable bending angle from 2-185 degrees for various applications
Stable performance with cutting-edge technology for strong, visually appealing welds
Easy maintenance with most consumable parts replaceable within 2 minutes
Available in multiple models (SMW2000 to SMW6000) to suit different requirements

Technical Specifications

Model	SIN-3000	SIN-4000
Processing Thickness	3-30mm	3-30mm
Processing Length	3000mm	4000mm
Bending Angle	0-135°	0-135°
Air Pressure	4-10 kg.f/cm²	4-10 kg.f/cm²
Dimensions (L×W×H)	4200×1900×1600mm	5200×2900×1600mm

Applications

This welding machine is ideal for manufacturing:

Reservoirs and storage tanks
Plastic containers and apparatus
Pipeline construction systems
Ventilation and water treatment systems
Environmental technology equipment
Swimming pools and transport logistics

Support & Services

24-month quality guarantee with free replacement for defective parts
Comprehensive technical support including installation guidance
Troubleshooting assistance and maintenance training
Secure packaging with wooden pallets and stretch film
Worldwide shipping with tracking information

Frequently Asked Questions

What materials can this machine weld?

It handles all thermoplastic sheets including PP, PE, HDPE, PVDF, PVC, and PPN.

What is the delivery time?

Standard delivery time is 15 working days with a supply capacity of 20 sets/month.

Is the equipment certified?

Yes, all machines are CE certified and manufactured to highest quality standards.
