2000mm-6000mm Welding Bending Machine Plastic Auxiliary Equipment

Name: 2000mm-6000mm Welding Bending Machine Plastic Auxiliary Equipment
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMH-3000，4000，5000
Price: 110.00 USD
Availability: InStock

Product Details

Brand Name: Sincere

Certification: CE

Model Number: SMH-3000，4000，5000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 15 Working Days

Supply Ability: 20 Stes Per Month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                6000mm Welding Bending Machine, 2000mm Welding Bending Machine, 6000mm Plastic Sheet Welding Machine


Sheet Thickness:	3.0-30.0mm	Heating Power:	9kw-15kw
Bending Length:	2000-6000mm	Transport Package:	Stretch Film And Wooden Pallet, Wooden Packing
Rated VoltageRated Voltage:	380V50/60Hz	Board Layers:	Single-Layer Or Multi-Layers
Specification:	Sheet Width 600, 900, 1200, 1500, 1800, 2000mm	Air Pressure(Kg.F /Cm2):	6.0-8.0

Sheet Thickness:	3.0-30.0mm
Heating Power:	9kw-15kw
Bending Length:	2000-6000mm
Transport Package:	Stretch Film And Wooden Pallet, Wooden Packing
Rated VoltageRated Voltage:	380V50/60Hz
Board Layers:	Single-Layer Or Multi-Layers
Specification:	Sheet Width 600, 900, 1200, 1500, 1800, 2000mm
Air Pressure(Kg.F /Cm2):	6.0-8.0

Product Description

2000mm-6000mm Welding Bending Machine Plastic Auxiliary Equipment

Product Specifications

Attribute	Value
Sheet Thickness	3.0-30.0mm
Heating Power	9kw-15kw
Bending Length	2000-6000mm
Transport Package	Stretch Film And Wooden Pallet, Wooden Packing
Rated Voltage	380V50/60Hz
Board Layers	Single-Layer Or Multi-Layers
Specification	Sheet Width 600, 900, 1200, 1500, 1800, 2000mm
Air Pressure (Kg.F /Cm2)	6.0-8.0

Product Overview

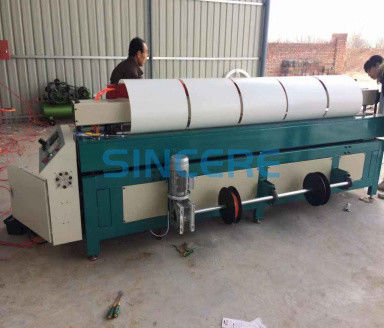

The HDPE/PP/PVC Plate/Board Butt Fusion Welding Bending Machine is designed for plastic boards with lengths of 2000-6000mm and thickness ranging from 3mm to 30mm. This versatile equipment features both horizontal and round welding capabilities, with a minimum circular size of 500mm for rolling welds.

Key Features

Bending Range: Capable of bending plastic plates from 2 to 100 degrees
Welding Function: Horizontal and round (rolling) welding with seamless circular shapes
Material Compatibility: Works with PP, PE, HDPE, PVDF, PVC, PPN sheets
Thickness Range: 3mm to 30mm (extendable to 50mm or 60mm upon request)
Easy Maintenance: Consumable parts replaceable within 2 minutes
Warranty: 24-month quality guarantee with free replacement for defective parts

Applications

This welding bending machine is widely used in manufacturing reservoirs, tanks, containers, plastic apparatus, pipeline construction, ventilation systems, and water treatment systems.

Model Comparison

Specification	SIN-3000	SIN-4000
Processing thickness (mm)	3-30mm	3-30mm
Processing length (mm)	3000	4000
Bending angle	0-135°	0-135°
Air pressure (kg.f/cm2)	4-10	4-10
Rated voltage (V)	380	380
Dimensions (L×W×H mm)	4200×1900×1600	5200×2900×1600

Support & Services

Our product comes with comprehensive technical support including installation services, training programs, and ongoing maintenance assistance. Our expert team is available to help maximize equipment efficiency and minimize downtime.

Packaging & Shipping

The equipment is carefully packaged in sturdy boxes with protective wrapping to prevent damage during transportation. We provide fast shipping with order tracking and aim for timely delivery to ensure customer satisfaction.

Frequently Asked Questions

Q: What is the brand name of the equipment?

A: The brand name is Sincere.

Q: What models are available?

A: Available models include SMH-3000, SMH-4000, and SMH-5000.

Q: Where is the equipment manufactured?

A: The equipment is manufactured in China with CE certification.

Q: What is the minimum order quantity?

A: Minimum order quantity is 1 unit.

Q: What is the delivery time?

A: Standard delivery time is 15 working days.
