Product Details
Place of Origin: Qingdao,China
Brand Name: Sincere
Certification: CE
Model Number: SJ45
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: US$2800-10000
Packaging Details: Stretch Film and Wooden Pallet, Wooden Packing
Delivery Time: 30 days
Payment Terms: L/C,T/T,Western Union
Supply Ability: Send Engineers Install and Test Machine

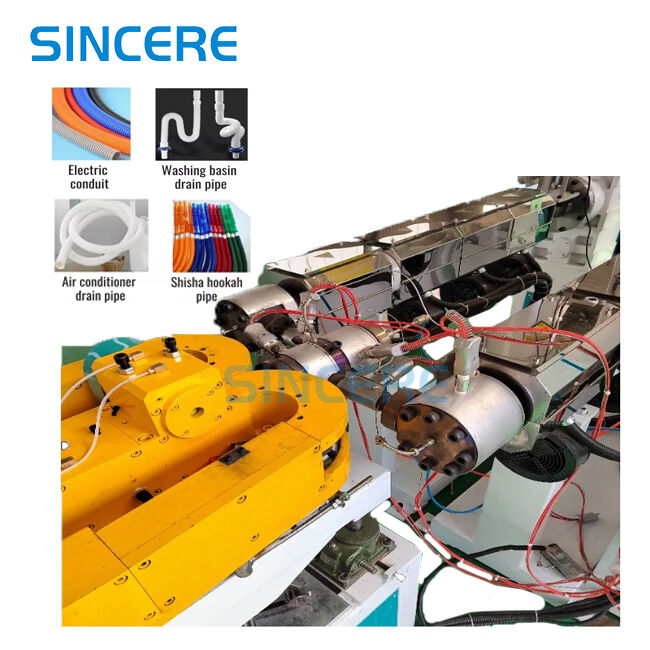

Our single-wall corrugated pipe extrusion line processes PVC, PE, or PP raw materials to produce pipes with excellent corrosion resistance, abrasion resistance, high strength, and flexibility. These pipes are widely used for cable protection, washing machine outlet tubes, vacuum cleaner ventilation pipes, and various industrial applications.single wall corrugated pipe is made of PVC,PP,PE,EVA,which has the characteristics of corrosion resistance,abrasion resistance,high strength, good flexibility,etc. It has been widely used in cable protection,washing machine outlet pipe, vacuum cleaner ventilation pipe and so on. Our single-wall corrugated pipe line has the advantages of accurate molding, reliable performance, fast speed,high efficiency,easy operation.
Raw material → Mixing → Vacuum feeding → Material drying → Single screw extruder → Forming mould → Winding machine → Finished product inspection & packing
| Model | SJ-90 | SJ-65 | SJ-45 | SJ-30 |
|---|---|---|---|---|
| Screw diameter (mm) | Φ90 | Φ65 | Φ45 | Φ30 |
| L/D Ratio | 30/1 | 30/1 | 30/1 | 30/1 |
| Output (kg/h) | 200 | 100 | 40 | 20 |
| Total power (kw) | 120 | 80 | 50 | 20 |
| Pipe diameter range (mm) | Φ110-Φ200 | Φ16-Φ75 | Φ8-Φ50 | Φ2-Φ15 |
| Haul off speed (m/min) | 10 | 10 | 15 | 15 |
| Annual capacity (10km) | 150 | 150 | 150 | 150 |
PVC powder + additive → Mixing → Spring feeding → Twin screw extruder → Mould and calibrator → Vacuum forming machine → Haul off machine → Cutting machine → Stacker
