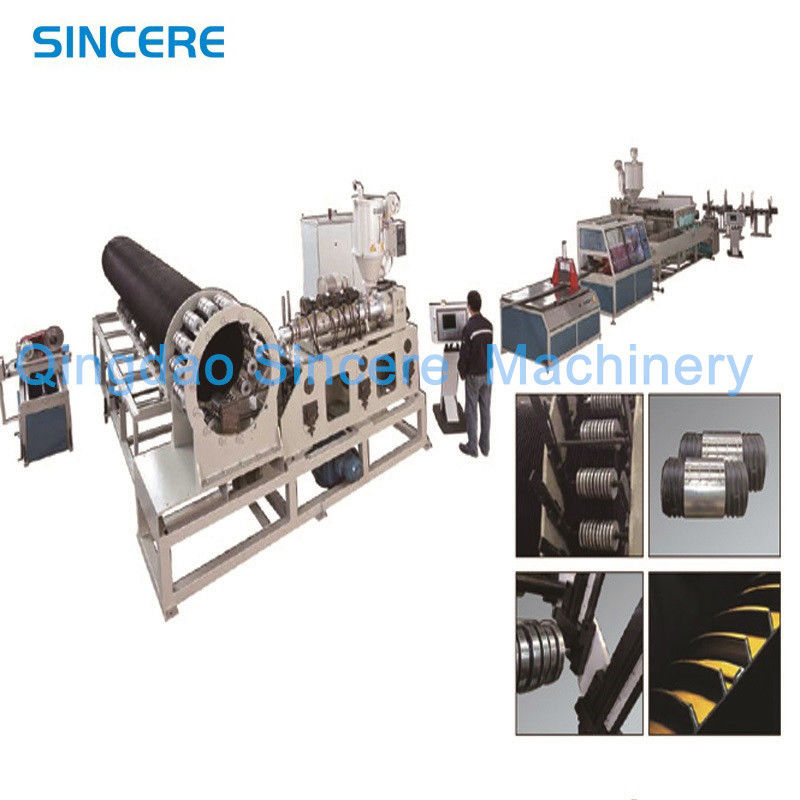

DN3000 HDPE Winding HDPE Pipe Extrusion Machine Spiral Pipe Extrusion Line

Name: DN3000 HDPE Winding HDPE Pipe Extrusion Machine Spiral Pipe Extrusion Line
Brand: Qingdao Sincere Machinery Co., Ltd
SKU: SMSG800, SMSG1600, SMSG2400, SMSG3000, SMSG4000
Price: 110.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Sincere

Model Number: SMSG800, SMSG1600, SMSG2400, SMSG3000, SMSG4000

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: USD 20,000-200,000

Delivery Time: 7-15 work days

Payment Terms: L/C,T/T

Supply Ability: 10 sets per month

Get Best Price

Chat Now

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Winding HDPE Pipe Extrusion Machine, HDPE Spiral Pipe Extrusion Line, DN3000  Spiral Pipe Extrusion Line


Production Speed:	5-15m/min	Barrel Heating Zones:	5-7 Zones
Main Motor Brand:	Siemens	Pipe Diameter Range:	50mm-2000mm
Barrel Material:	38CrMoAlA	Total Power:	50-150KW
Power Supply:	380V/50Hz	Heating Method:	Electric Heating
Cooling Method:	Water Cooling	Material:	Steel/Plastic
Belt Type:	Reinforced Steel Belt	Control System:	PLC
Pipe Diameter:	200-5000mm	Extrusion Type:	Spiral Winding

Production Speed:	5-15m/min
Barrel Heating Zones:	5-7 Zones
Main Motor Brand:	Siemens
Pipe Diameter Range:	50mm-2000mm
Barrel Material:	38CrMoAlA
Total Power:	50-150KW
Power Supply:	380V/50Hz
Heating Method:	Electric Heating
Cooling Method:	Water Cooling
Material:	Steel/Plastic
Belt Type:	Reinforced Steel Belt
Control System:	PLC
Pipe Diameter:	200-5000mm
Extrusion Type:	Spiral Winding

Product Description

DN3000 HDPE Winding HDPE Pipe Extrusion Machine Spiral Pipe Extrusion Line

Product Specifications

Production Speed	5-15m/min
Barrel Heating Zones	5-7 Zones
Main Motor Brand	Siemens
Pipe Diameter Range	50mm-2000mm
Barrel Material	38CrMoAlA
Total Power	50-150KW
Power Supply	380V/50Hz
Heating Method	Electric Heating
Cooling Method	Water Cooling
Material	Steel/Plastic
Belt Type	Reinforced Steel Belt
Control System	PLC
Pipe Diameter	200-5000mm
Extrusion Type	Spiral Winding

Product Overview

The steel belt reinforced polyethylene (PE) spiral corrugated pipe is a new type of bellows with high-density polyethylene as the basic material, featuring a steel ring reinforcement structure. This design combines the corrosion resistance and smooth flow characteristics of plastic pipes with exceptional strength and durability.

Key Advantages

Superior ring stiffness exceeding 12.5KN/m²
40% lighter weight compared to traditional polyethylene pipes
High impact resistance and durability
Corrosion resistant to acids, alkalis, and salts
50+ year service life
Easy transportation and installation

Technical Specifications

Model	SMSG-800	SMSG-1200	SMSG-1600	SMSG-2200/2400	SMSG-3000/4000
Extruders	SJ65+SJ55	SJ90+SJ65	SJ100+SJ65	SJ120+SJ90	SJ150+SJ100
Output capacity(kg/h)	250-300	350-400	500-600	750-850	1000-1500
Pipe diameter(mm)	200-800	400-1200	800-1600	1200-2200 800-2400	2000-3000 2000-4000
Production speed(m/h)	2-16	2-12	1-6	0.5-5	0.3-3
Installed power(kw)	180	250	300	400	500

Machine Components

Extruder System

Motor brand: Siemens
Inverter brand: Delta
Screw and barrel material: 38CrMoAlA
Ceramic or cast aluminum heating
High production capacity with lower temperature plasticizing design

Extrusion Die Head

The mould is made of high-quality alloy steel with chrome-plated internal flow channels for wear and corrosion resistance. Special sizing sleeve ensures high production speed and excellent pipe surface quality.
