Product Details
Place of Origin: CHINA
Brand Name: Sincere
Certification: CE
Model Number: SMSG800/SMSG800/SMSG1200/SMSG1600/SMSG2200/SMSG3000/SMSG4000
Payment & Shipping Terms
Minimum Order Quantity: 1
Packaging Details: Stretch Film and Wooden Pallet, Wooden Packing
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: customised
Purpose: |
Drainage And Sewage |
Manufacturing Technique: |
Winding |
Ring Stiffness: |
SN 2, 4,6 , 8, 10 ,12, 14, 16 |
Structure: |
Hollow Wall Structure |
Pipe Diameter: |
200mm--5000mm |
Output: |
250kg/h-1150kg/h |
Voltage: |
380V 50HZ 3Phase(Customized) |
Purpose: |
Drainage And Sewage |
Manufacturing Technique: |
Winding |
Ring Stiffness: |
SN 2, 4,6 , 8, 10 ,12, 14, 16 |
Structure: |
Hollow Wall Structure |
Pipe Diameter: |
200mm--5000mm |
Output: |
250kg/h-1150kg/h |
Voltage: |
380V 50HZ 3Phase(Customized) |

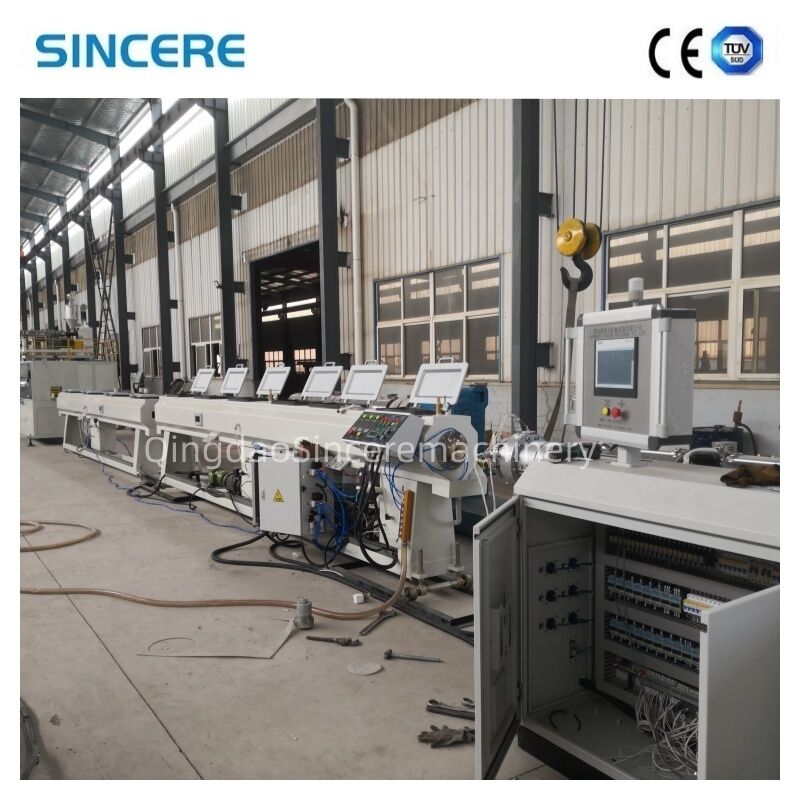

This pipe production line is a new kind of drainage pipe production line developed by our company, is mainly used for producing the HDPE/PP winding drainage pipe from 300-3500mm. The kind of pipe is made from PE/PP with thermoforming technology, it is of high ring stiffness, low weight, easy jointing and no leak, and it is mainly used for municipal drainage, agricultural drainage and agricultural irrigation. It is of electrical fusion welding socket and spigot, this is the most of reliable joint.
The line is designed with the latest technology, high production efficiency, and easy operation.
The line can continuously produce the winding pipe, its efficiency is very high, not need to change the mould. It can produce the pipe with different ring stiffness and wall structure from 300mm to 4000mm within short time by changing some elements, and there is no material waste during the changing elements. In addition, this production line can produce large diameter compositing reinforced pipe for high pressure water transportation after it can be updated.
Application for Hollow Wall Corrugated Pipe:
Hollow wall corrugated pipe has been widely used for sewerage and drainage in municipal,irrigation in agriculture, it will replace the cement pipe, cast iron pipe and other pipes. because of low cost of assembling, easy operation, easy connection and economical construction.
The features of PE Spiral Corrugated Pipe
1) Lower weight of per-meter
2) Belling link, good sealing
3) High ring stiffness, high strength
4) Anti-frozen and long service life (50 years)
5) Convenient installation
| Model | Pipe range | Extruder | Installed power(kw)Loading factor 50% | kgh Max.Capacity |
Overall dimension(L*W*H) | ||
| Model | LD | Motor power | |||||
| SMSG-800 | 200-800 | SJ7533 SJ6533 |
33:1 | 55 30 |
145 | 290 | 23*10*3.2 |
| SMSG-1200 | 300-1200 | SJ9033 SJ6533 |
33:1 | 75 37 |
175 | 380 | 24*10*3.5 |
| SMSG-1600 | 800-1600 | SJ10033 SJ7530 |
33:1 | 110 45 |
250 | 540 | 26*11*5 |
| SMSG-2200 | 1200-2200 | SJ10033 SJ7530 |
33:1 | 132 55 |
280 | 740 | 32*16*6 |
| SMSG-2600 | 1400-2600 | SJ12033 SJ7533 |
33:1 | 132 75 |
260 | 500 | 39*17*6.5 |
| SMSG-3000 | 1800-3000 | SJ12033 SJ7533 |
33:1 | 160 75 |
330 | 820 | 42*17*7 |
| SMSG-4000 | 2000-4000 | SJ15033 SJ9033 |
33:1 | 250kw 90kw |
440 | 1200 | 48*20*7.5 |
Our service
*We can provide customers with perfect installation and use services.
*We can provide customers with satisfactory products according to their needs.
*When problems arise during the use of products, we can provide appropriate solutions.
*The warranty period is one year, except man-damage.
*Welcome to visit our factory and looking forward to win-win cooperation.
